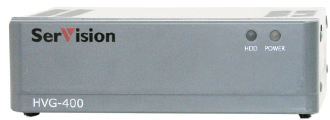

THE HVG400 |
|
| |
- Superior site-monitoring and video-recording equipment in a small, cost-effective package
- Ideal for residential sites and small businesses
Secure your home or office with SerVision’s high-performance HVG security systems. Specially designed for small businesses and residential sites, the HVG can transmit and record video from up to four cameras simultaneously. Live and recorded video can be viewed on-site via a closed-circuit TV screen or off-site via PC, PDA, or cellular phone. SerVision’s innovative video compression technologies deliver high-quality video over narrow-bandwidth connections so even cellular phones can receive clear, smooth video from an HVG.
Sensors can help keep you posted about what’s happening on-site when you are not there. Video motion detection (VMD) sensors are built into the unit, so intruders can be detected immediately. In addition, external sensors – smoke detectors, light sensors, window or door sensors, etc. – can be connected to each HVG unit. The unit can notify you via e-mail or SMS when any of the sensors is activated. Sensors can also turn on video recording, aim cameras at locations of interest, and activate alarms and other devices.
The HVG features two-way live audio transmission that lets people off-site speak to those on-site in real-time. Its built-in hard drive can store weeks’ worth of video so you can view events long after they take place. Low power consumption and a small footprint enhance the appeal of this reliable and versatile security machine.
The HVG 400 Video Gateway supports:
- Integration of four video cameras
- Bi-directional audio support
- Integration of six input sensors; integration of an additional 16 input sensors using an expansion module
- Integration of two output activation sensors (activators)
- Integration of Pan-Tilt-Zoom (PTZ) controllers, enabling remote aiming and focusing of PTZ video cameras
- Integrated LAN connection
- High-quality Digital Video Recording (DVR) capabilities on all channels
- Remote viewing of live and recorded video via PC, PDA or cellular phone
- Proprietary transcoding algorithms for video compression without significant degrading of video quality
- Transmission of high-quality video at low bit rates
- Simultaneous playing of live and recorded video
- Pre- and post-alarm video recording
- Real-time SMS and e-mail event notifications
- Software generated motion detection with adjustable threshold and regions of interest
- Quiet - no fans
- Low power consumption
Models:
|
VIDEO INPUT |
| Standard |
PAL / NTSC |
| No. of Channels |
4 |
| Resolution |
640x480 (VGA), 320x240 (QVGA), 160x120 (QSIF) |
| Video Compression |
MPEG 4 up to 160 QVGA frames per second |
| Compressed Data Rates |
9 kbps to 4 Mbps, user configurable |
| PTZ Control |
2 ports; 1 RS-232 port, 1 RS-485 port |
| PTZ Protocol |
Most common protocols |
| Audio Channels |
2 inputs: 1 active microphone, 1 passive microphone
2 outputs: 1 internal built-in speaker, 1 external connector
& bi-directional audio support |
|
VIDEO OUTPUT |
| Standard |
PAL / NTSC |
| User Interface |
Supplied PS/2 mouse
Optional touch screen (supported models only) |
|
COMMUNICATION |
| Network connectivity |
Built-in 10/100 Base-T Ethernet suitable for cable/xDSL |
| Maintenance |
Web-based configuration |
| External Network Support |
Custom proxy for remote access and video streaming
Dynamic DNS support – No-IP, DynDNS, SVDNS (free use of Servision's SVDNS server is available |
|
RECORDING |
| Mode |
Continuous, event-driven or scheduled |
| HD Type |
IDE interface: option for an IDE flash disk |
| HD Size |
Default: 3.5", 160GB, up to 500GB (optional) |
|
EVENT HANDLING |
| Storage |
3.3GB per day per channel @ 15fps/320kbps QVGA continuous recording |
| Event Type |
External sensor input, video motion detection, video loss |
| Action Type |
Local recording, client notification, SMS, email notification, external activator, AVV (Alarm Video Verification) |
| Motion Detection |
Threshold control, area of interest, exclude areas |
|
I/O |
| Input Channels |
6 opto-isolated inputs Optional external sensor hub for up to 16 additional inputs |
| Output Channels |
2 opto-isolated activators |
|
POWER |
| Voltage Input |
12V DC |
| Max. Power Consumption |
12W |
|
OPERATING ENVIRONMENT |
| Ambient Temperature |
0ºC - 45ºC; 32 ºF - 113 ºF |
| Relative Humidity |
< 85% (no condensation) |
|
MECHANICAL DESIGN |
| Dimension (mm) |
185(W) x 181(D) x 60(H) mm; 7.2”(W) x 7.1”(D) x 2.3”(H) |
| Weight (kg) |
1.7(kg), 3.7(lbs) |
|
CLIENT SOFTWARE |
| |
Proprietary software for PC, Web server, PDA & cellphone |
| |
Snapshot over web |
|
|
| |
|
|
|
