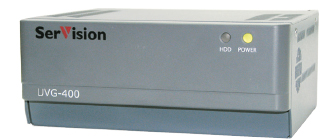

THE UVG400 |
|
| |
- Superior site-monitoring and video-recording equipment in a small, cost-effective package
- Ideal for residential sites and small businesses
Go wireless with SerVision’s UVG security systems! Ideal for monitoring locations where cable-based network connections are not available, the UVG is specially designed to stream high-quality video over cellular and WiFi connections. Install one in the back parking-lot of your business and you can keep an eye on the parked cars and the rear of the building – whether you’re inside the building, home at night, or away on a business trip. Place one in your garage or stable, or even on a crane at a construction site, and you can keep tabs on everything that occurs there.
UVG security systems offer all of the HVG features – live and recorded video streaming to closed-circuit monitors and off-site PCs, cellular phones, and PDAs; sensor-activated recording and notifications; two-way audio; a high-capacity hard drive for storage of recorded video; and low power consumption. To this winning combination they add wireless networking support to create a complete security system suitable for any location.
The UVG 400 Video Gateway supports:
- Integration of four video cameras
- Bi-directional audio support
- Integration of four input sensors; integration of an additional 16 input sensors using an expansion module
- Integration of two output activation sensors (activators)
- Integration of Pan-Tilt-Zoom (PTZ) controllers, enabling remote aiming and focusing of PTZ video cameras
- Integrated LAN connection
- Support for cellular modems (GSM and CDMA) and wireless communications (WiFi, WiMax)
- Built-in router with Ethernet connectors for connecting external IP-based devices to the network
- High-quality Digital Video Recording (DVR) capabilities on all channels
- Remote viewing of live and recorded video via PC, PDA or cellular phone
- Proprietary transcoding algorithms for video compression without significant degrading of video quality
- Transmission of high-quality video at low bit rates
- Simultaneous playing and recording of live video from all channels
- Simultaneous playing of live and recorded video
- Pre- and post-alarm video recording
- Real-time SMS and e-mail event notifications
- Software generated motion detection with adjustable threshold and regions of interest
- Quiet - no fans
- Low power consumption
Models:
|
VIDEO INPUT |
| Standard |
PAL / NTSC |
| No. of Channels |
4 |
| Resolution |
640x480 (VGA), 320x240 (QVGA), 160x120 (QSIF) |
| Video Compression |
MPEG 4 up to 160 QVGA frames per second |
| Compressed Data Rates |
9 kbps to 4 Mbps, user configurable |
| PTZ Control |
2 ports; 1 RS-232 port, 1 RS-485 port | | PTZ Protocol | Most common protocols |
| Audio Channels |
2 inputs: 1 active microphone, 1 passive microphone
2 outputs: 1 internal built-in speaker, 1 external connector
Bi-directional audio support |
|
VIDEO OUTPUT |
| Standard |
PAL / NTSC |
| User Interface |
Supplied PS/2 mouse
Optional touch screen (supported models only) |
|
COMMUNICATION |
| Network connectivity |
Built-in 10/100 Base-T Ethernet suitable for cable/xDSL
Dual USB interface slot for cellular (GPRS/CDMA/UMTS/EDGE/HSDPA) and wireless
(Wi-Fi/Wi-Max) modems |
| Maintenance |
Web-based configuration |
| External Network Support |
Custom proxy for remote access and video streaming
Dynamic DNS support – No-IP, DynDNS, SVDNS (free use of Servision's SVDNS server is available |
|
RECORDING |
| Mode |
Continuous, event-driven or scheduled |
| HD Type |
IDE interface: option for an IDE flash disk |
| HD Size |
Default: 3.5", 160GB, up to 500GB (optional) |
|
EVENT HANDLING |
| Storage |
3.3GB per day per channel @ 15fps/320kbps QVGA continuous recording |
| Event Type |
External sensor input, video motion detection, video loss |
| Action Type |
Local recording, client notification, SMS, email notification, external activator, AVV (Alarm Video Verification) |
| Motion Detection |
Threshold control, area of interest, exclude areas |
|
I/O |
| Input Channels |
4 opto-isolated inputs Optional external sensor hub for up to 16 additional inputs |
| Output Channels |
2 opto-isolated activators |
| POWER |
| Voltage Input |
12V DC |
| Max. Power Consumption |
15W |
|
OPERATING ENVIRONMENT |
| Ambient Temperature |
0ºC - 45ºC; 32 ºF - 113 ºF |
| Relative Humidity |
< 85% (no condensation) |
|
MECHANICAL DESIGN |
| Dimension (mm) |
185(W) x 181(D) x 76(H) mm; 7.2”(W) x 7.1”(D) x 2.9”(H) |
| Weight (kg) |
2.1(kg), 4.6(lbs) |
|
CLIENT SOFTWARE |
| |
Proprietary software for PC, Web server, PDA & cellphone |
| |
Snapshot over web |
|
|
| |
|
|
|
