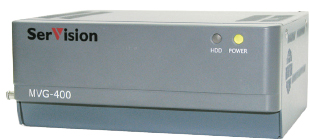

THE MVG400 |
|
| |
- Monitoring systems for mobile platforms such as busses, trains, police vans, delivery trucks, ambulances and other emergency response vehicles
- Wireless video streaming via cellular modem or WiFi
- GPS-based for vehicle tracking
- Anti-shock, vibration-resistant casing for reliability on the road
The MVG is SerVision's ground-breaking video gateway for mobile applications. Ideal for deployment in buses, trains, police vans, delivery trucks and emergency response vehicles. The MVG uses cellular and wireless technologies to stream high-quality live or recorded video from vehicles to remote client devices. Full GPS support allows remote users to locate and track vehicles, while the anti-shock vibration resistant casing ensures reliability on the road. Support for a closed-circuit monitor enables drivers to see what is going on in every corner of the vehicle at a glance, and bi-directional audio capabilities enable them to speak freely with dispatchers and other personnel.
The MVG 400 Video Gateway supports:
- Integration of four video cameras.
- Bi-directional audio support
- Integration of four input sensors; integration of an additional 16 input sensors using an expansion module.
- Integration of two output activation sensors (activators).
- Integration of Pan-Tilt-Zoom (PTZ) controllers, enabling remote aiming and focusing of PTZ video cameras.
- Integrated LAN connection.
- Support for cellular modems (GSM and CDMA) and wireless communications (WiFi, WiMax).
- Built-in router with Ethernet connectors for connecting external IP-based devices to the network.
- High-quality Digital Video Recording (DVR) capabilities on all channels.
- Remote viewing of live and recorded video via PC, PDA or cellular phone.
- Proprietary transcoding algorithms for video transmission at low bit rates for video compression without significant degrading of video quality.
- Simultaneous playing and recording of live video from all channels.
- Simultaneous playing of live and recorded video.
- Pre- and post-alarm video recording.
- Real-time SMS and e-mail event notifications.
- Software generated motion detection with adjustable threshold and regions of interest.
- Quiet - no fans.
- Low power consumption.
Models:
|
VIDEO INPUT |
| Standard |
PAL / NTSC |
| No. of Channels |
4 |
| Resolution |
640x480 (VGA), 320x240 (QVGA), 160x120 (QSIF) |
| Video Compression |
MPEG 4 up to 160 QVGA frames per second |
| Compressed Data Rates |
9 kbps to 4 Mbps, user configurable |
| PTZ Control |
2 ports; 1 RS-232 port, 1 RS-485 port |
| PTZ Protocol |
Most common protocols |
| Audio Channels |
2 inputs: 1 active microphone, 1 passive microphone
2 outputs: 1 internal built-in speaker, 1 external connector
Bi-directional audio support |
|
VIDEO OUTPUT |
| Standard |
PAL / NTSC |
| User Interface |
Optional push button display control
Optional touch screen (supported models only) |
|
COMMUNICATION |
| Network connectivity |
Built-in 10/100 Base-T Ethernet suitable for cable/xDSL
Dual USB interface slot for cellular (GPRS/CDMA/UMTS/EDGE/HSDPA) and wireless
(Wi-Fi/Wi-Max) modems |
| Maintenance |
Web-based configuration |
| External Network Support |
Custom proxy for remote access and video streaming
Dynamic DNS support – No-IP, DynDNS, SVDNS (free use of Servision's SVDNS server is available)
Internal 12-channel GPS module |
|
RECORDING |
| Mode |
Continuous, event-driven or scheduled |
| HD Type |
IDE interface: option for an IDE flash disk
Removable HD |
| HD Size |
Default: 2.5", 60GB, up to 120GB (optional) |
|
EVENT HANDLING |
| Storage |
3.3GB per day per channel @ 15fps/320kbps QVGA continuous recording |
| Event Type |
External sensor input, video motion detection, video loss |
| Action Type |
Local recording, client notification, SMS, email notification, external activator, AVV (Alarm Video Verification) |
| Motion Detection |
Threshold control, area of interest, exclude areas |
|
I/O |
| Input Channels |
4 opto-isolated inputs
Optional external sensor hub for up to 16 additional inputs |
| Output Channels |
2 opto-isolated activators (built-in relay) |
|
POWER |
| Voltage Input |
Provides 12V DC / 500mA for cameras & external equipment |
| Max. Power Consumption |
14.5W |
|
OPERATING ENVIRONMENT |
| Ambient Temperature |
0ºC - 45ºC; 32 ºF - 113 ºF |
| |
Option for extended temperature: -5ºC - 65ºC; 23 ºF - 149 ºF |
| Relative Humidity |
< 85% (no condensation) |
|
MECHANICAL DESIGN |
| Dimension (mm) |
185(W) (265 incl.supports) x 181(D) x 76(H) mm;
7.2”(W) (10.4" incl. supports) x 7.1”(D) x 2.9”(H) |
| Weight (kg) |
2 (kg), 4.4 (lbs) |
|
CLIENT SOFTWARE |
| |
Proprietary software for PC, Web server, PDA & cellphone |
| |
Snapshot over web |
|
|
| |
|
|
|
